Build Your Own Counterweight Desk
Let my plans guide you through the process.
See the original video and build process here.
Customer desks can be seen here.

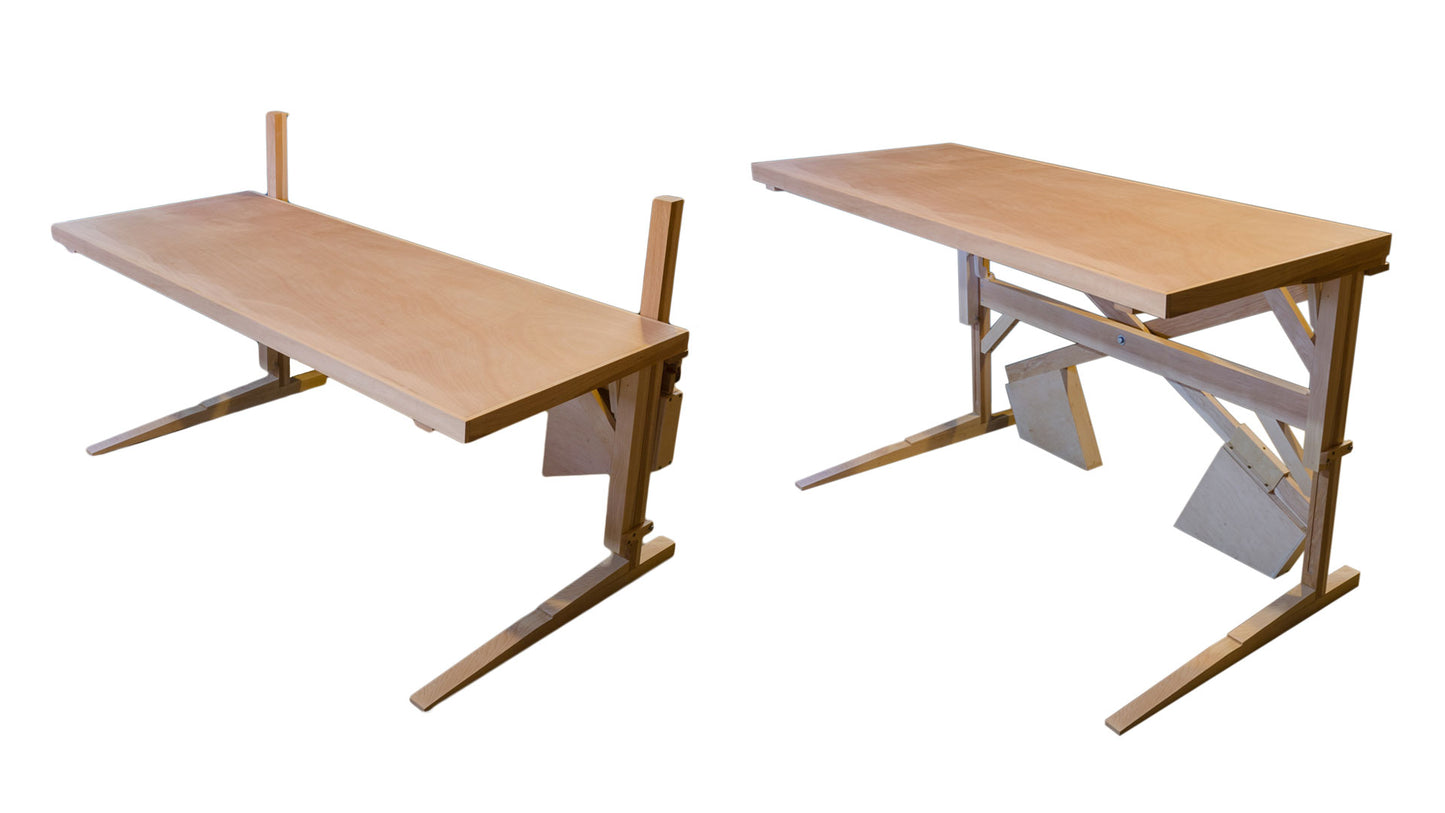

Low vs high height comparison below.
The table surface is 30″ x 72″.
Drawings, dimensions, multiple views and more comprise the plan’s 26 page length. The format is as follows: numbered exploded diagram, iso view and dimensioned drawings section, discussion of each component’s construction, assembly and adjustment, general advice and thoughts.
What do I get?
Your receipt e-mail has a download link with immediate access to download the 3 MB .zip file. No special software is required to open this. Within you will find four files:
- The main 26 page pdf plans file
- A two page 1:1 size template for the locking arm
- A brief one page document on viewing the SketchUp file
- The SketchUp model itself.
Primary tools required
Table saw, jig or band saw, router, thickness planer, jointer (optional but helpful), hacksaw or angle grinder, drill press (also optional but helpful).
Other tools may speed things up or simplify a task but they are not required.
The mechanism and top as constructed in my video cost between $200 and $250 (USD) locally in Michigan, US.
Plans are in PDF format and available for immediate download following payment.
Have a different question or issue? E-mail me and I’ll respond as soon as possible: firstname.lastname@example.org
Plans are $39.00 USD: To place an order please email me at the address above, I will send you a Stripe invoice and fulfill the order manually. I will return to an automated system in a week or two, thanks for your patience. [6-August-2021]
– Released 10/16/15
